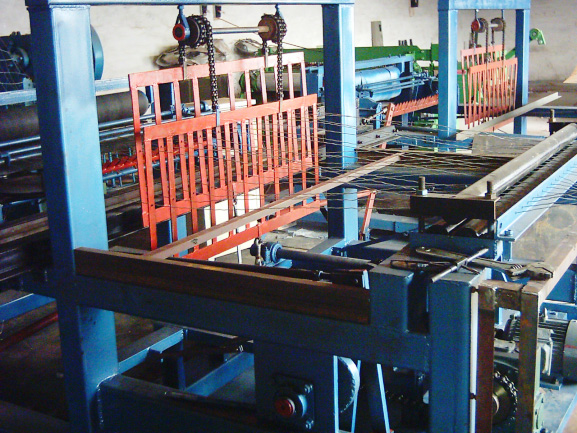

JinLu JLJW series graticule machine is simple, easy to master technology, automatic sewing machine, made out of mesh formation, machine failure less reliable, easy maintenance, suitable for all types of businesses. The aircraft compiled screen for coal Artificial Roof, saving galvanized wire, safety index has reached the national standard, diameter wire as a trace, this network is not easy to pull and so on. China's coal industry has become the focus of the implementation of new technologies.
equipment components : main machine、pay-off stand、electrical box、cutting mesh machine、winding mesh machine
The main technical parameters:
|
Machine size
|
3500mm*2000mm*1800mm
|
|
Max weaving width
|
1m or 1.5m（can by your demand custom-made ）
|
|
Weaving size
|
50mm－200mm
|
|
Max wire diameter
|
4.5mm
|
|
Min wire diameter
|
1.0mm
|
|
Power
|
2.2KW
|
|
Weaving speed
|
20-25times/min
|
|
Machine weight
|
2.5T
|
|
Work way
|
Mechanical automatic cutting and automatic winding mesh
|
